Key Features
- Xilinx Artix-7 FPGA (XC7A200T, FBG484 package) — 215,360 logic cells
- Onboard USB-JTAG — program and debug in-system, no external download cable required
- 4Gbit DDR3 (16-bit, 800Mbps)

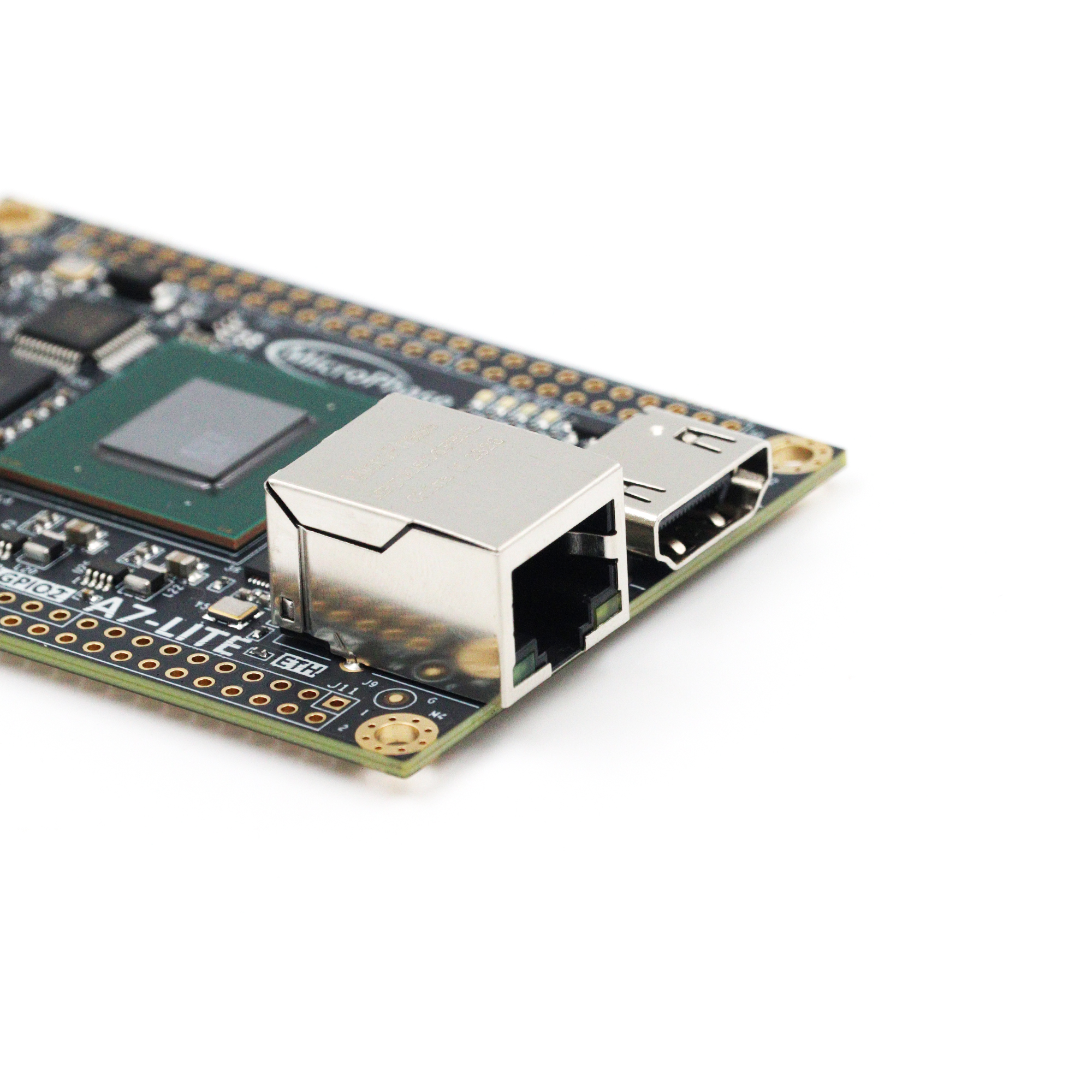

- 1080P@60Hz HDMI output, configurable as 720P@60Hz HDMI input
- Gigabit Ethernet (10/100/1000 auto-sensing)
- 128Mbit QSPI Flash for FPGA configuration storage
- Micro SD card slot supporting SD and SPI modes

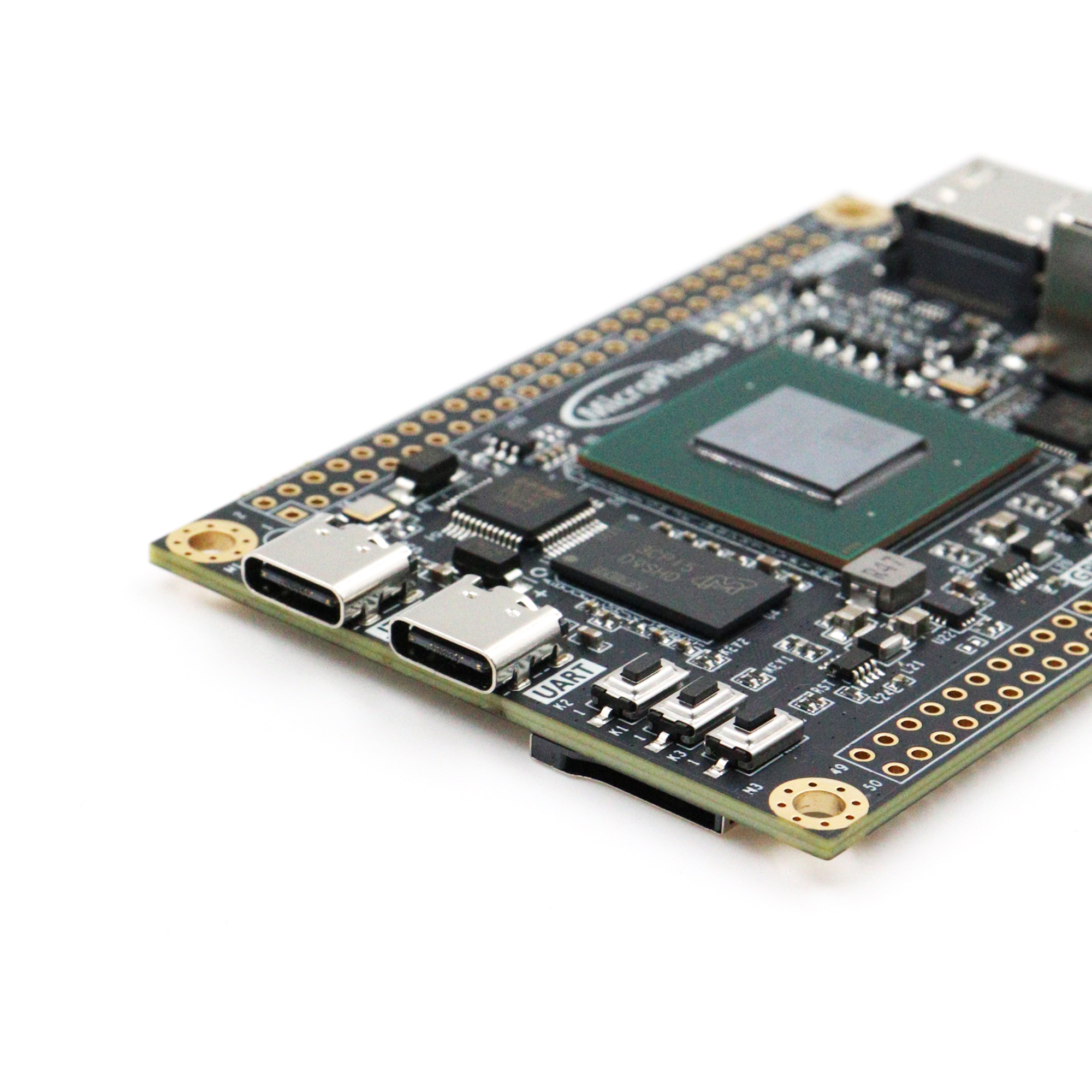

- Dual USB Type-C ports (USB-JTAG + USB-UART)
- 256Kbit I2C EEPROM
- 50MHz active oscillator
- Dual 50-pin 2.54mm expansion headers — 88 user I/Os (44 @ 3.3V, 44 adjustable voltage)
Specifications
| Item | Specification |
|---|---|
| FPGA | Xilinx Artix-7 XC7A200T-2FBG484C |
| DDR3 | 4Gbit, 16-bit, 800Mbps |
| USB-JTAG | Onboard (USB Type-C), in-system program download and simulation, no external programmer needed |
| QSPI Flash | 128Mbit, for FPGA configuration storage |
| HDMI | 1x HDMI TX (1080P@60Hz), configurable as HDMI RX (720P@60Hz) |
| Ethernet | 1x 10/100/1000 auto-sensing Gigabit Ethernet |
| EEPROM | 256Kbit I2C EEPROM |
| SD Card | 1x Micro SD slot, SD & SPI modes |
| USB-UART | 1x USB Type-C UART for FPGA-to-PC communication |
| Clock | 50MHz active oscillator |
| Buttons / LEDs | 3 user buttons; 2 user LEDs, 1 FPGA config status LED, 1 power LED |
| Expansion | 2x 50-pin 2.54mm headers, 88 I/Os (44 @ 3.3V, 44 adjustable voltage) |
Pricing available on request — use the “Request a Quote” button for B2B inquiries.
