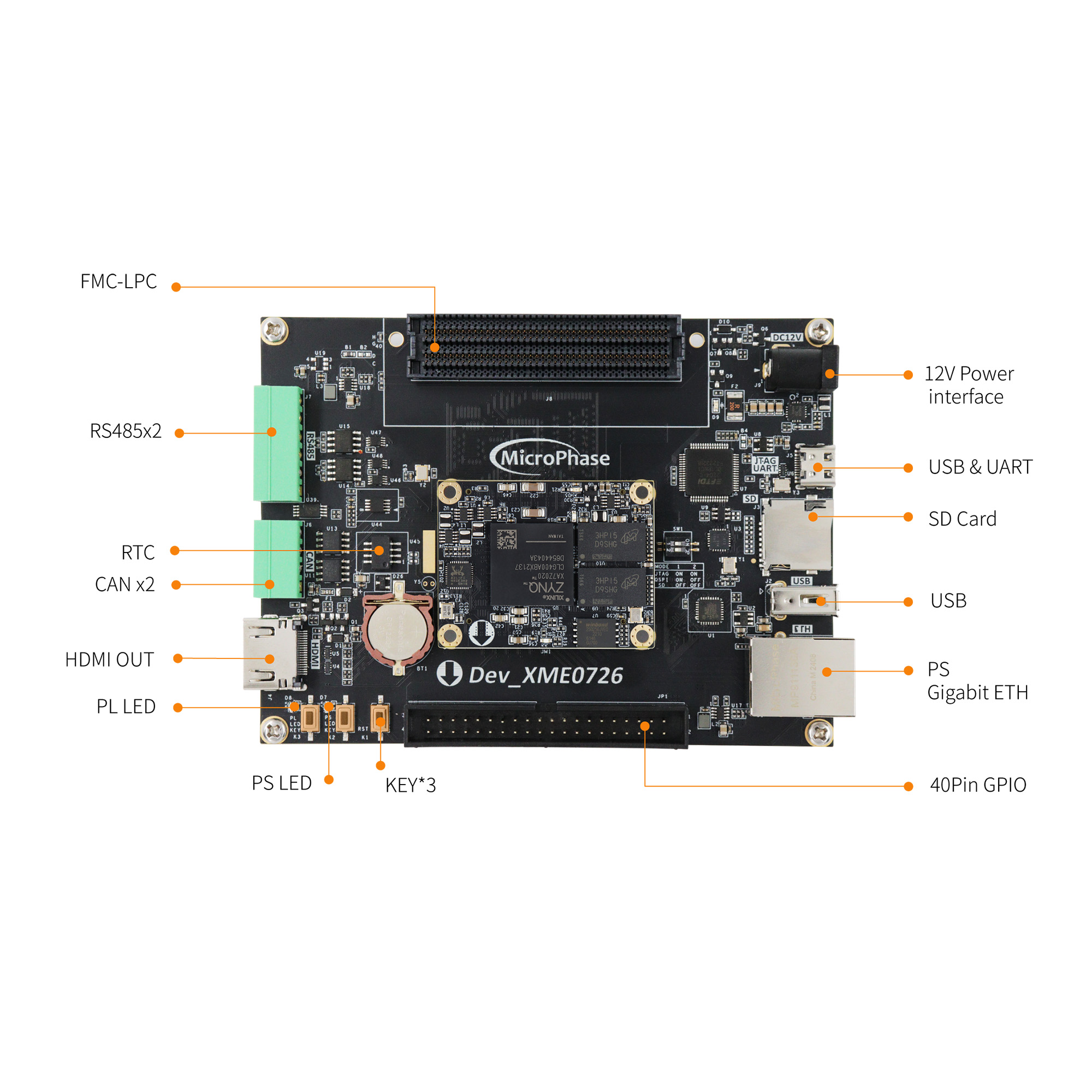

Key Features
- Zynq-7026 SoC (ARM Cortex-A9 + FPGA fabric)
- Onboard JTAG download circuit — no external programmer needed
- PS Gigabit Ethernet port
- Dual CAN bus interfaces
- Dual RS485 interfaces
- HDMI output supporting 1080P@60Hz
- LPC FMC connector for daughter cards
- USB OTG port
- Micro SD card slot for system boot
- 256Kb EEPROM and RTC for time/date logging
- 1 PL LED + 1 PS LED, 1 PL button + 1 PS button + 1 system reset
Specifications
| Item | Specification |
|---|---|
| SoC | Xilinx Zynq-7026 |
| PS UART | 1x, for serial communication and debugging |
| JTAG | Onboard downloader, no external programmer needed |
| Ethernet | 1x PS Gigabit Ethernet |
| CAN | 2x CAN interfaces |
| RS485 | 2x RS485 interfaces |
| HDMI Output | 1x, supports 1080P@60Hz |
| LEDs | 1 PL LED, 1 PS LED |
| Buttons | 1 PL button, 1 PS button, 1 system reset |
| SD Card | Micro SD slot, boot from SD |
| LPC | LPC FMC connector for daughter cards |
| USB | 1x USB OTG |
| EEPROM | 256Kb |
| RTC | Records time and date |
Pricing available on request — use the “Request a Quote” button for B2B inquiries.
