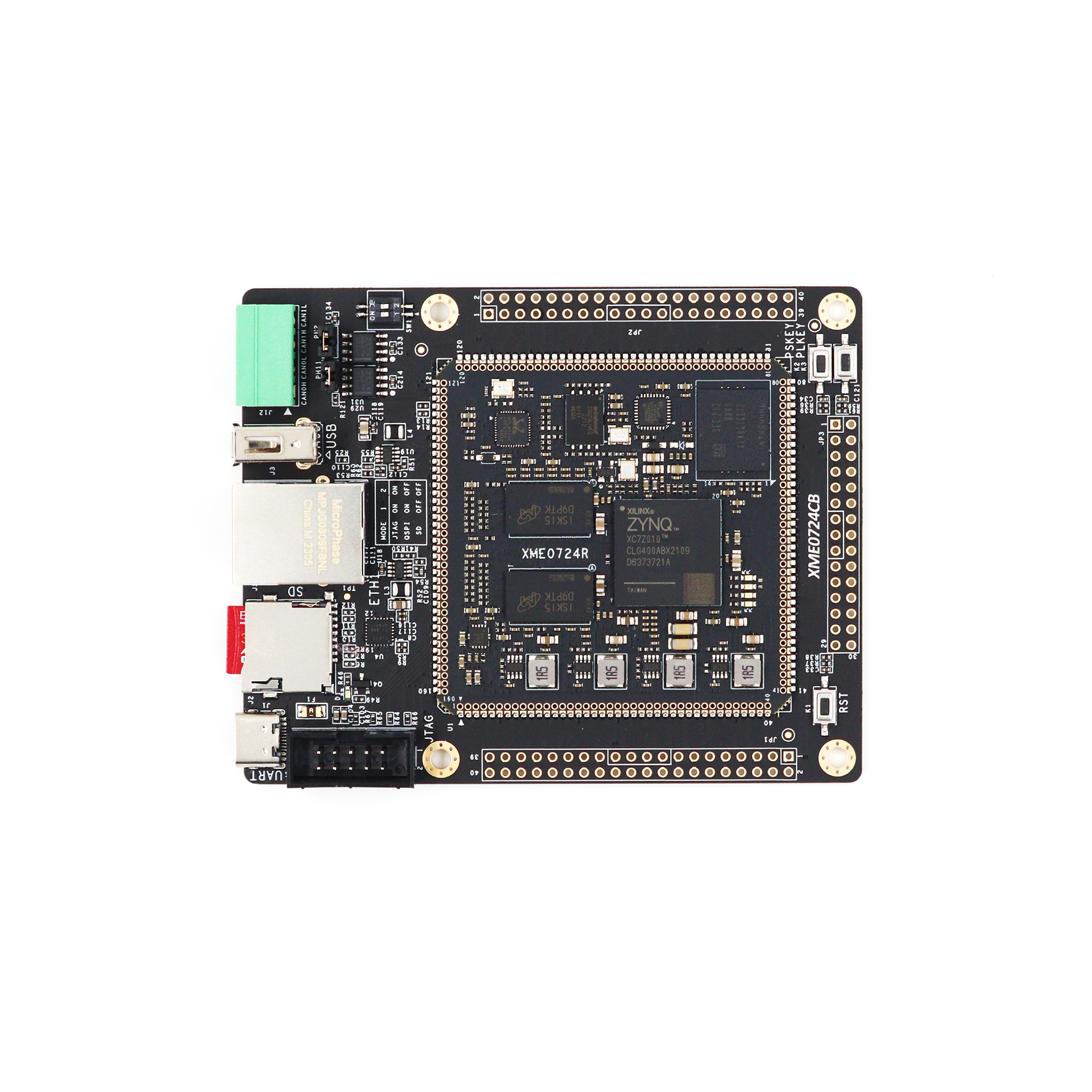

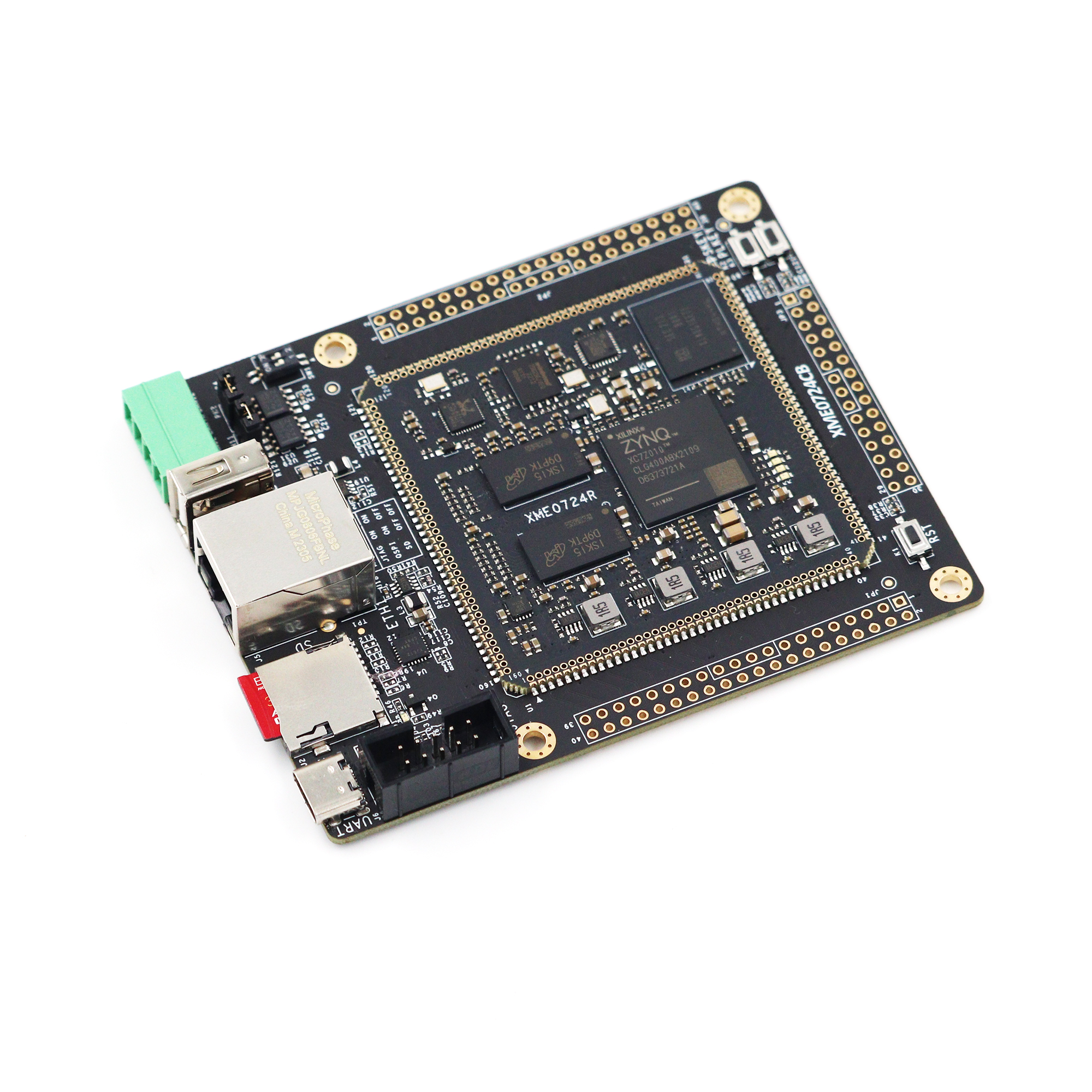

Key Features
- Xilinx Zynq-7020 SoC
- 1x USB Host, 2x CAN bus interfaces
- 10/100/1000 auto-sensing Gigabit Ethernet
- Micro SD card slot
- 10-pin 2.54mm JTAG download header
- 3x expansion headers: 2x 40-pin (36 PL I/O each) + 1x 30-pin (20 PL + 4 PS I/O)
- 50MHz PL clock
- 1 system reset + 1 PS button + 1 PL button
Specifications
| Item | Specification |
|---|---|
| SoC | Xilinx Zynq-7020 |
| USB Host | 1x |
| CAN | 2x |
| Ethernet | 1x 10/100/1000 auto-sensing |
| SD Card | 1x Micro SD |
| JTAG | 10-pin 2.54mm |
| Expansion | 2x 40-pin (36 PL I/O each) + 1x 30-pin (20 PL + 4 PS I/O) |
| Clock | 50MHz PL |
| Buttons | 1 system reset + 1 PS + 1 PL |
Pricing available on request — use the “Request a Quote” button for B2B inquiries.
